Gravity Flow Carton Flow Rack for Industry Storage

  • Application: Carton flow pallet racking is particularly suitable for the assembly line, order picking,packing, and dispatch area.
  • Column Pitch:50mm
  • Color: RAL color system
  • Warranty: 5 years
  • Aftersale Service: Response within 24 hours,and replace free damaged
  • BDL-CF03
  • 7308900000


The carton flow rack take the advantage of gravity, which is allowed to roll under gravity from loading to picking area on plastic rollers.


• Saves on labor by providing a more orderly picking system. Order pickers work in the front aisle, completely separated from the replenishers who work in the back aisle.

• Carton pick systems help you make more efficient use of your storage requirements

• Eliminates much of the walking and searching time

• Suitable for the assembly line, order picking, packing, and dispatch area.

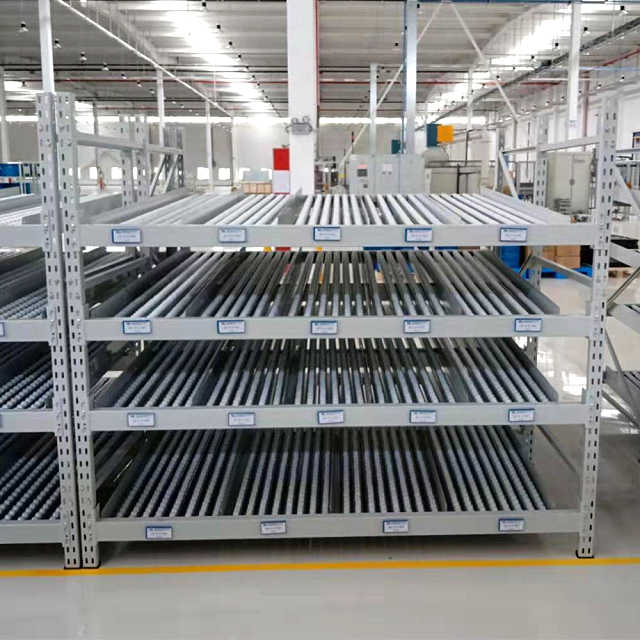

carton flow pallet racking

More Details You May Need


Professional design for your requirement and offer you the free CAD drawing

Trade terms


Payment terms

T/T, 30% prepaid and  balance payment before shipping, L/C at sight

Quick Delivery

Big production capacity allow us in a position to make quick delivery.


Q235B Steel


Usually do orange beams and blue columns, but we also do customized, according to RAL color system




Factory EXW price


1*20GP container, less than 23tons, volumn less than 28CBM

Surface treatment

Powder Coated

Main market

North America, Middle America, Middle East, Africa, Australia


We can provide ISO9001/ISO14001/CE/SGS certificates


Standard export packaging, binding + plastic film + plastic strip + anti-extrusion bubble mold

1. Column Specifications

Medium duty carton flow pallet racking has two type holes: diamond and teardrop shape.

The first one is China Style, pitch 75mm, the last is America style, pitch 76.2mm.

2. Horizontal and Diagonal Bracing for Column

The following steps could guide you to install the upright frames, the H and D bracing is easy to make a mistake, If you still have problems, I will share the video with you.

3. How to install the rollers and divider between the two beams?

1. Our products own the CE certificate for Euro market.

SGS certification is site audited SGS-CSTC standards technical service Co., Ltd.

Additionally we also passed the ISO 9001 and ISO 14001.

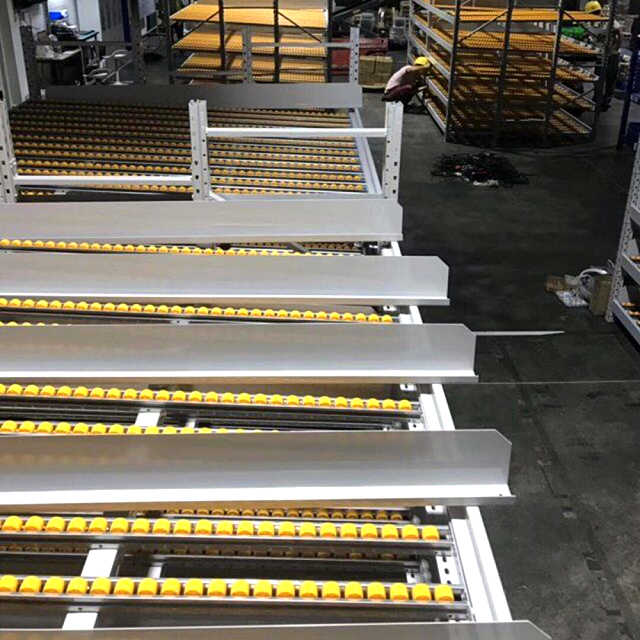

manufacture process
