Metal Warehouse Very Narrow Pallet Racking with Guide Rail

  • Application:Very Narrow Aisle (VNA) racking,same as the name narrow aisle(1.8-1.9m).It is an ideal storage solution for warehouses of all sizes, distribution centers, retail store inventory rooms, and industrial applications.
  • Column Pitch:75mm/76.2mm
  • Color: RAL color system
  • Warranty: 5 years
  • Aftersale Service:Response within 24 hours,and replace free damaged
Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • BDL-VNA05

  • 7308900000

Overview:

Narrow aisle pallet racking is a high-density storage system, utilizes high-level retrieval equipment with reduced operational space requirements to increase storage capacity. Additionally, the aisle width is only 1.8-1.9 meters, 45% more floor space can be made available than with a wide aisle solution.

Advantages:

1. Maximum storage optimization by reducing aisle space

2. Could utilizing the vertical height of the warehouse

3. Reduce the damage of rack and products

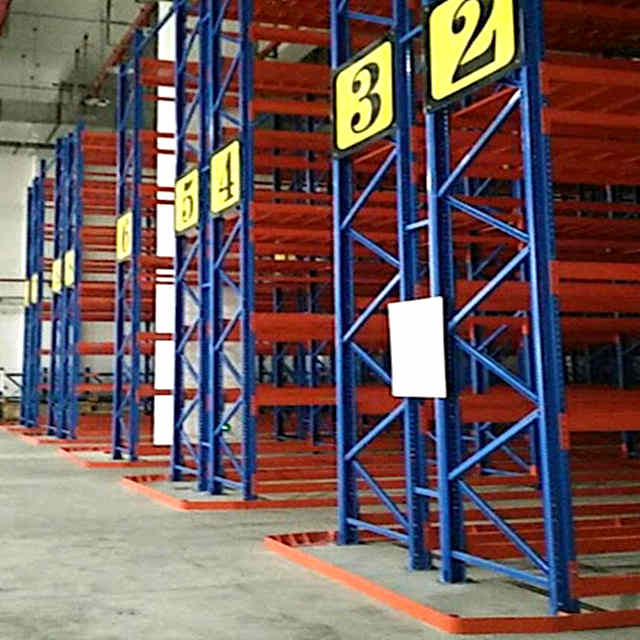

Very Narrow Aisle Pallet Racking 1


More details you may need

Design

Professional design for your requirement and offer you the free CAD drawing

Trade terms

FOB NANJING/FOB SHANGHAI;CIF;CFR;EXW;DDU

Payment terms

T/T, 30% prepaid and  balance payment before shipping, L/C at sight

Quick Delivery

Big production capacity allow us in a position to make quick delivery.

Materials

Q235B Steel

Color

Usually do orange beams and blue columns, but we also do customized, according to RAL color system

Capacity

1000-5000kg/level

Price

Factory EXW price

MOQ

1*20GP container, less than 23tons, volumn less than 28CBM

Surface treatment

Powder Coated

Main market

North America, Middle America, Middle East, Africa, Australia

Certification

We can provide ISO9001/ISO14001/CE/SGS certificates

Package

Standard export packaging, binding + plastic film + plastic strip + anti-extrusion bubble mold


1. Column Specifications

Botro’s column has two type holes: diamond and teardrop shape.

The first one is China Style, pitch 75mm, the last is America style, pitch is 76.2mm.


2. Horizontal and Diagonal Bracing for Column

The following steps could guide you to install the upright frames, the H and D bracing is easy to make a mistake, If you still have problems, I will share the video with you.

upright frame assembly(1)


3. How to Choose Good Capacity Box Beam？

When you are inquiry about versatile pallet racking system, you will find that the price will vary greatly sometimes. At this time, you should reconsider the reasons, maybe the materials gap.

Please see the following three types of beams are widely available on the market today. A comparison of the data, you will find the best load capacity is beam 1, beam 1 is our company offer.

Box Beam


manufacture process

1. Our products own the CE certificate for Euro market.

SGS certification is site audited SGS-CSTC standards technical service Co., Ltd.

Additionally we also passed the ISO 9001 and ISO 14001.

Certificates







1.WELCOME CUSTOMER
In recent years, our clients from many countries came to China and visit our factory, we are very welcome and receipt them warm-hearted. On the other hand, our foreign trade team also participate in the exhibitions abroad positively. We want to introduce ourselves to the world

customer visit and expo



2.ABOUT ANHUI BOTRO RACKING MANUFACTURE CO, LTD

  • A leading & professional manufacturer of storage shelving & racking in China.

  • More than 15 years of experience in the field of producing storage metal racks.

  • Our factory covers over 11, 000 square meters.

  • More than 100 professional and experienced staff.

  • Exclusive manufacturing machines and equipment.

  • Production capacity up to 1,500 tons every month.



FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Warehouse Rack is one of our featured products.

2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Tianchang City, Anhui Province, China, close to Nanjing. You can fly to Nanjing airport directly. You are warmly welcome to visit us whenever you are available!

3. Q: What is the raw material of your products?
A: As general, the raw material of the steel code is  Q235.Other steel is also available to clients' requirements.

4. Q: What are the delivery times?
A: It depends on the order quantity and racking types. As general, within 15 days, for ordinary order quant of Warehouse Rack.

5. Q: May I know the status of my order?
A: Yes. We will send you information and photos at the different production stages of your order. You will get the latest information on time.
