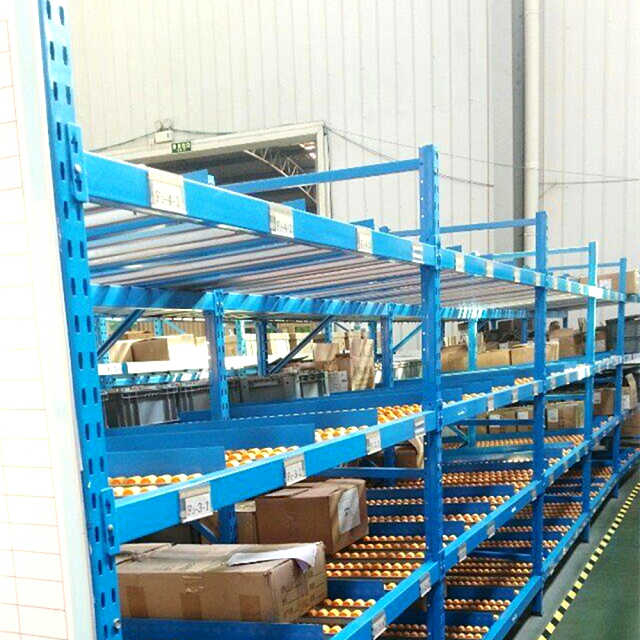

Steel Carton Flow Rack for industry storage

Application:
Carton flow pallet racking is particularly suitable for the assembly line, order picking, packing, and dispatch area.
Column Pitch:50mm
Color: RAL color system
Warranty: 5 years
Aftersale Service:
Response within 24 hours,and replace free damaged
Availability:
  • BDL-CFR03
  • 730890

Overview:

The carton flow rack take the advantage of gravity, which is allowed to roll under gravity from loading to picking area on plastic rollers.



Advantages:

  • Saves on labor by providing a more orderly picking system. Order      pickers work in the front aisle, completely separated from the replenishers      who work in the back aisle.

  • Carton pick systems help you make more efficient      use of your storage requirements

  • Eliminates much of the walking and searching time

  • Suitable for the assembly line, order picking, packing, and dispatch area.

       carton flow rack 34carton flow rack 33

More Details You May Need

Design

Professional design for your requirement   and offer you the free CAD drawing

Trade terms

FOB NANJING/FOB SHANGHAI;CIF;CFR;EXW;DDU

Payment terms

T/T, 30% prepaid and  balance   payment before shipping, L/C at sight

Quick Delivery

Big production capacity allow us in   a position to make quick delivery.

Materials

Q235B Steel

Color

Usually do orange beams and blue   columns, but we also do customized, according to RAL color system

Capacity

1000-5000kg/level

Price

Factory EXW price

MOQ

1*20GP container, less than 23tons,   volumn less than 28CBM

Surface treatment

Powder Coated

Main market

North America, Middle America, Middle   East, Africa, Australia

Certification

We can provide ISO9001/ISO14001/CE/SGS   certificates

Package

Standard export packaging, binding +   plastic film + plastic strip + anti-extrusion bubble mold










1. Column Specifications

Medium duty carton flow pallet racking has two type holes: diamond and teardrop shape.

The first one is China Style, pitch 75mm, the last is America style, pitch 76.2mm.

https://jprorwxhlkrrlm5q-static.micyjz.com/cloud/loBpkKknlnSRmionijnqiq/image1.jpegcolumn specification





2. Horizontal and Diagonal Bracing for Column

The following steps could guide you to install the upright frames, the H and D bracing is easy to make a mistake, If you still have problems, I will share the video with you.

https://rororwxhlkrrlm5q-static.micyjz.com/cloud/lpBpkKknlnSRmionijqqiq/image3.jpegupright frame assembly(1)





3. How to install the rollers and divider between the two beams?

carton flow rack 37carton flow rack 36carton flow rack 40


manufacture process
