Overview:

Cantilever racks are suitable for storing long materials, ring materials, plates, pipes, and irregular goods, which are mostly made of H-shaped steel or cold-rolled steel; The cantilever and column are connected by plug-in or bolt-on. The cantilever rack could be single-sided or double-sided, has the characteristics of stable structure, good load capacity, and high space utilization.

Advantages:

1. The wide range of available arm lengths and load capacities allow the system to provide solutions for a large variety of goods, such as wood panels, sheet metal, lumber, pipe etc.

2. Self-supporters and therefore do not require to be attached to walls or other fixed objects to guarantee its load-bearing capacity. The pitch is 100/76.2mm, so the level space is adjustable.

3. A reversible arm prevents the arms from being damaged during loading and unloading.

cantilever

MORE DETAILS YOU MAY NEED

Design	Professional design for your requirement and offer you the free CAD drawing
Trade terms	FOB NANJING/FOB SHANGHAI;CIF;CFR;EXW;DDU
Payment terms	30% prepaid by T/T, make balance payment before shipping, L/C at sight
Quick Delivery	Within 15 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
Materials	Q235B Steel
Color	Usually do orange beams and blue columns, but we also do customized, according to RAL number.
Capacity of rack	1000-5000kg/level
Price	Factory EXW price
MOQ	1*20GP container,<23tons,<28CBM
Surface treatment	Powder Coated
Main market	North America, Middle America, Middle East, Africa, Australia
Certification	We can provided to ISO9001/CE/SGS/SONCAP for you
Package	Standard export package, Bundle + Plastic Film + Plastic strip+Anti-extrusion gas mold

1. Column For Light Duty/Medium Duty/ Heavy Duty Double Sided Cantilever Rack

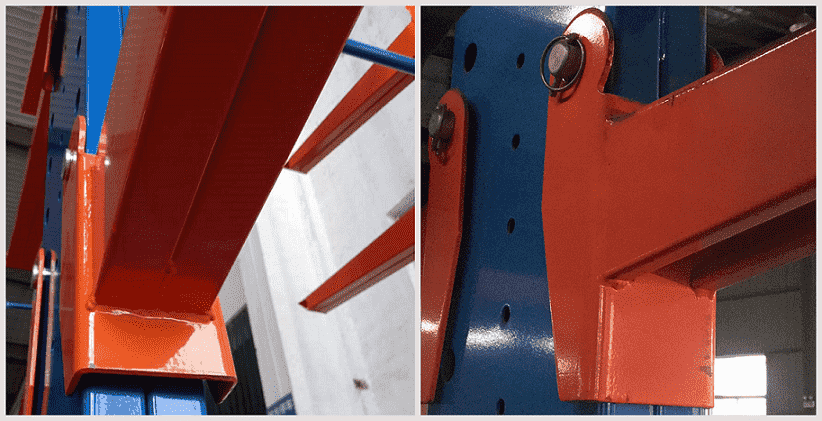

2. CE Certificated Double Sided Cantilever Rack Arm

There are also two types of cantilever arm, one is C type welding, the other is U type, for your different load capacity requirements and your hobbies. We could do a straight arm, a standard arm(tilt-up 2 degrees )，and an inclined arm(more than 2 degrees).

1	U type arm	U8060/90/9660	U9060/90/9660	U10060/90/9660	...	U18060/90/9660
2	Weld C type arm	C8090/9660	C9090/9660	C10090/9660	...	C20090/9660

3. Double sided/Single Sided Cantilever Rack Base

There are 2 types of bases available, one is a welding base, the other is an assembly base. For the welding base, it is easier to install at the site of the customer. For assembly base, for the same container it will save space and fill more products, then save shipping cost.

4. H and D Bracing for Metal Double Sided Cantilever Rack

The Bracing is connecting 2 columns, to keep the stability demand of the whole structure, the size is based on the centerline distance of the column upright.
