Storage Metal Light Duty Double Sided Cantilever Rack

Application: Long Materials, Lumber/Timber; Industrial/Warehouse; Plasterboard;Rebar; Cars Vehicle; Supply chain and logistics; Building Material



Application: Long Materials, Lumber/Timber; Industrial/Warehouse; Plasterboard;Rebar; Cars Vehicle; Supply chain and logistics; Building Material



Column Pitch: 100mm/76.2mm



Column Section Sizes: 200*60*2.0; 200*80*2.5; 300*90*3.0;350*96*3.5;410*96*3.5



Arm Section Sizes: U80-U180; C Type Weld C 80-C200



Color: RAL Color System



Warranty: 5 years

Availability:
  • Botro
  • 7308900000

Overview:

Cantilever racks are suitable for storing long materials, ring materials, plates, pipes, and irregular goods, which are mostly made of H-shaped steel or cold-rolled steel; The cantilever and column are connected by plug-in or bolt-on. The cantilever rack could be single-sided or double-sided, has the characteristics of stable structure, good load capacity, and high space utilization.


Advantages:

1. The wide range of available arm lengths and load capacities allow the system to provide solutions for a large variety of goods, such as wood panels, sheet metal, lumber, pipe etc.

2. Self-supporters and therefore do not require to be attached to walls or other fixed objects to guarantee its load-bearing capacity. The pitch is 100/76.2mm, so the level space is adjustable.

3. A reversible arm prevents the arms from being damaged during loading and unloading.


MORE DETAILS YOU MAY NEED

Design

Professional design for your requirement and offer you the free CAD drawing

Trade terms

FOB NANJING/FOB SHANGHAI;CIF;CFR;EXW;DDU

Payment terms

30% prepaid by T/T, make balance payment before shipping, L/C at sight

Quick Delivery

Within 15 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.

Materials

Q235B Steel

Color

Usually do orange beams and blue columns, but we also do customized, according to RALnumber.

Capacity of rack

1000-5000kg/level

Price

Factory EXW price

MOQ

1*20GP container,<23tons,<28CBM

Surface treatment

Powder Coated

Main market

North America, Middle America, Middle East, Africa, Australia

Certification

We can provided to ISO9001/CE/SGS/SONCAP for you

Package

Standard export packaging, binding + plastic film + plastic strip + anti-extrusion bubble mold



字体统一使用arial 16,标题加粗,正文正常字体

1. Column For Light Duty/Medium Duty/ Heavy Duty Double Sided Cantilever Rack


2. CE Certificated Double Sided Cantilever Rack Arm

There are also two types of cantilever arm, one is C type welding, the other is U type, for your different load capacity requirements and your hobbies. We could do a straight arm, a standard arm(tilt-up 2 degrees ),and an inclined arm(more than 2 degrees).


1

U type arm

U80*60/90/96*60

U90*60/90/96*60

U100*60/90/96*60

...

U180*60/90/96*60

2

Weld C type arm

C80*90/96*60

C90*90/96*60

C100*90/96*60

...

C200*90/96*60


3. Double sided/Single Sided Cantilever Rack Base

There are 2 types of bases available, one is a welding base, the other is an assembly base. For the welding base, it is easier to install at the site of the customer. For assembly base, for the same container it will save space and fill more products, then save shipping cost.

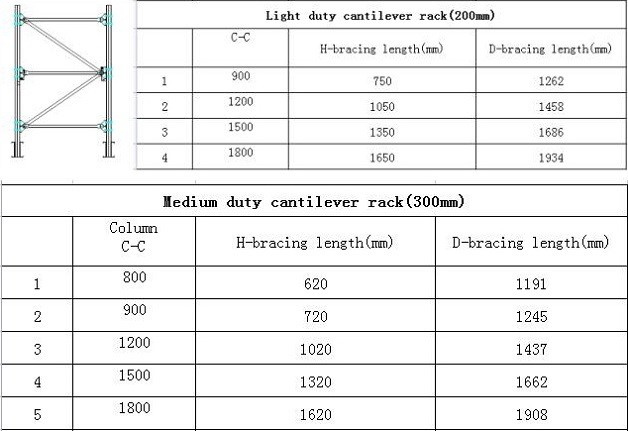

4. H and D Bracing for Metal Double Sided Cantilever Rack

The Bracing is connecting 2 columns, to keep the stability demand of the whole structure, the size is based on the centerline distance of the column upright.
