Overview:

The components of selective industrial pallet rack: posts, diagonals, and horizontals on screws, the beams are hinged with hooks and secured with clamps.

The column has two rows of holes, the pitch of the holes is 75mm and 76.2mm. Therefore, the beams can be adjusted up and down by 75/76.2mm.

Additionally practical accessories such as support bars, steel decking, wood shelf, wire mesh decking, etc. And it is easy to install to meet the required storage of different goods.

Advantages:

1. Selective storage pallet racking is the lowest cost warehouse storage solution , allows access to every pallet ensuring optimum stock rotation.

2. Cost-effective pallet rack shelving is compatible with a wide range of standard materials handling equipment.

More details you may need

Design	Professional design for your requirement and offer you the free CAD drawing
Trade terms	FOB NANJING/FOB SHANGHAI;CIF;CFR;EXW;DDU
Payment terms	T/T, 30% prepaid and balance payment before shipping, L/C at sight
Quick Delivery	Big production capacity allow us in a position to make quick delivery.
Materials	Q235B Steel
Color	Usually do orange beams and blue columns, but we also do customized, according to RAL color system
Capacity	1000-5000kg/level
Price	Factory EXW price
MOQ	1*20GP container, less than 23tons, volumn less than 28CBM
Surface treatment	Powder Coated
Main market	North America, Middle America, Middle East, Africa, Australia
Certification	We can provide ISO9001/ISO14001/CE/SGS certificates
Package	Standard export packaging, binding + plastic film + plastic strip + anti-extrusion bubble mold

pallet racking system

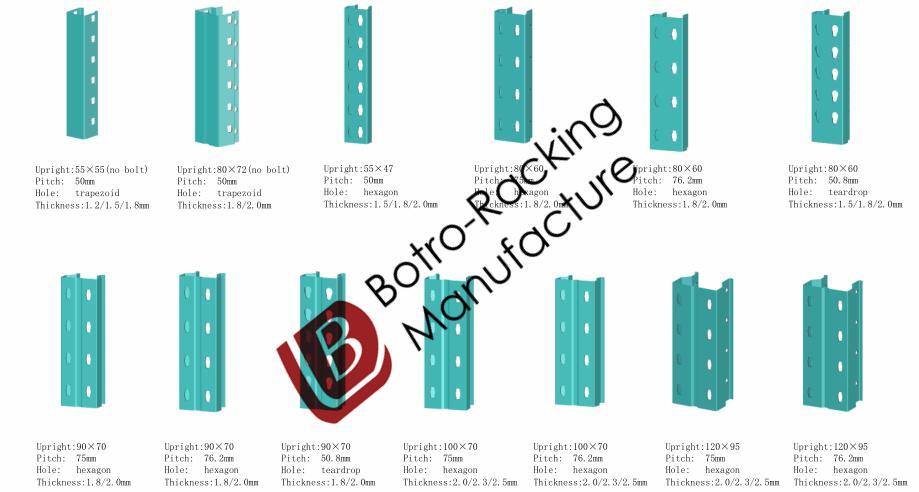

1. Column Specifications

Heavy duty conventional steel pallet racking has two type holes: diamond and teardrop shape.

The first one is China Style, pitch 75mm, the last is America style, pitch 76.2mm.

2. How to Choose Good Capacity Box Beam？

When you are inquiry about versatile pallet racking system, you will find that the price will vary greatly sometimes. At this time you should reconsider the reasons, maybe the materials gap.

Please see the following three types of beams are widely available on the market today. A comparison of the data, you will find the best load capacity is beam 1, beam 1 is our company offer.

3. Horizontal and Diagonal Bracing for Column

The following steps could guide you to install the upright frames, the H and D bracing is easy to make a mistake, If you still have problems, I will share the video with you.
