Introduction To Botro Mobile Roll Out Cantilever Racking System for China Project

Views: 74     Author: Site Editor     Publish Time: 2025-02-21      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

一.Project Overview

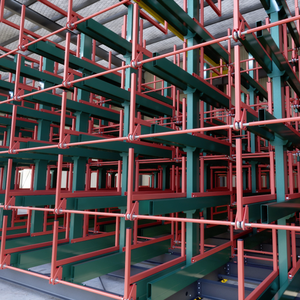

mobile roll out cantilever racking


Botro Racking, a leading manufacturer of intelligent storage solutions, has recently completed a cutting-edge Mobile Roll Out Cantilever Racking System in Sichuan, China. This innovative project combines advanced automation and space optimization to address the challenges of storing long, irregular, and bulky materials such as pipes, rods, and panels. The total length of the customized mobile roll out cantilever racking by the customer is 8 meters, which can store materials within 9 meters. The section between the cantilevers is 1.9 meters, which can store materials within 3 meters. The mobile roll out cantilever racking design consists of four layers for storing goods, with a static cantilever on the top and the other three layers are mobile cantilevers, each cantilever can carry 600 kilograms.Of course, the load-bearing capacity of the cantilever can be customized. The mobile roll out cantilever racking is placed on mobile base and moved by the rail that is elevated above the ground. The mobile roll out cantilever racking can not only move as a whole, but also the cantilever can be freely extended and retracted.


二.Technical Highlights


mobile racking system


1.Multi-Layer Design & Load Capacity

The system has four storage layers, with the top layer fixed and the bottom three layers equipped with movable cantilevers. The load capacity of each cantilever is 600 kilograms, ensuring the strong performance of heavy industrial materials.This design eliminates the need for wide channels and maximizes storage density by 80% compared to traditional systems.

2.Dual Mobility: Rack and Cantilever Flexibility

Full Rack Mobility: The entire structure moves along rails via electric drives, requiring only one operational aisle for multiple racks. This reduces floor space usage while improving accessibility.

Cantilevers Functionality: Cantilevers extend and retract independently, allowing precise retrieval of materials without repositioning the entire rack. This dual-motion system enhances operational efficiency and safety.


mobile roll out cantilever racking


3.Robust Engineering & Safety

Constructed with Q235 steel and reinforced joints, the system meets rigorous industrial standards. The rail design prevents ground interference and ensures stability during movement.

Safety features include emergency stop mechanisms, overload sensors, and CE-certified components, aligning with global safety protocols.

4.Advantages Over Conventional Systems

Space Efficiency: By consolidating aisles and utilizing vertical space, the system increases storage capacity by 3x compared to static cantilever racks.

Customization: Botro offers tailored solutions for diverse environments of warehouse.


三.Application Scenarios


mobile roll out cantilever racking


This system is ideal for industries such as construction, metalworking, and logistics, where long or irregularly shaped materials require organized, high-density storage. Its adaptability also suits cold chain logistics and archival document management.


四.Why Choose Botro?


Botro Racking Factory


As a source factory with over 20 years of expertise, Botro Racking guarantees:

End-to-End Solutions: From design to installation, backed by a 50+ member technical team.

Proven Track Record: Successful deployments globally, including projects in Vietnam, Australia, and Shanghai.


五.Invitation for Collaboration


mobile roll out cantilever racking


Botro invites potential partners to visit our 17,000㎡ manufacturing base in Anhui. Witness firsthand how our Electric Mobile Telescopic Cantilever Racking System can revolutionize your storage operations.For inquiries or site visits, contact us at +86-25-5210 9471 or visit www.botroracking.com. Let’s engineer the future of smart logistics together!
