What Is A Cantilever Rack And How Does It Work?

A cantilever rack provides a smart solution for storing long, bulky, or irregularly shaped items that do not fit standard racking. You use cantilever racking to support materials on horizontal arms that extend from a sturdy vertical column, making loading and unloading simple. This type of cantilever racking suits products that demand open access and flexible storage.

• Typical items stored include:

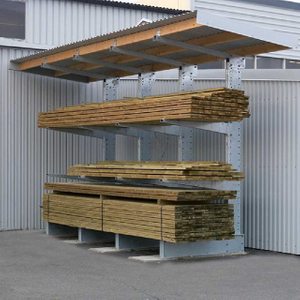

• Lumber, plywood, and siding

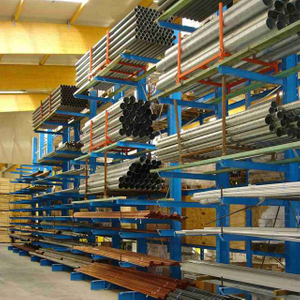

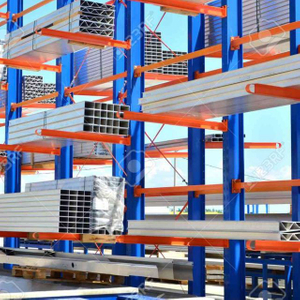

• Metal and plastic pipes, tubes, and rods

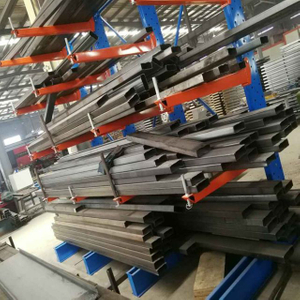

• Sheet metal, extrusions, and carpets
  You gain efficient warehouse organization and easy access with cantilever systems across industries like automotive, construction, retail, and manufacturing.




Key Takeaways

• Cantilever racks store long, bulky, or irregular items using horizontal arms that extend from vertical columns, allowing easy access and flexible storage.

• The racks use strong steel arms and bases to safely support heavy loads, with adjustable arms to fit different item sizes and shapes.

• You can choose single- or double-sided racks depending on your space and workflow needs, making them versatile for many industries like construction and manufacturing.

• Regular maintenance, proper load distribution, and secure anchoring keep cantilever racks safe and durable for heavy-duty use.

• Cantilever racks improve warehouse organization by maximizing vertical space and providing quick access to large or awkward items.




Cantilever Rack Basics

What Is a Cantilever Rack

You need a storage solution that handles items too long, bulky, or irregular for standard racking. A cantilever rack gives you an efficient way to store these challenging materials. Unlike traditional pallet racks, which use horizontal beams between uprights, a cantilever rack features vertical columns (uprights) with horizontal arms that extend outward. These arms support your materials without vertical obstructions on the loading side, so you get full access to every item.

Tip: Cantilever racking works best for products like lumber, pipes, metal bars, and sheet goods. You can adjust the arm heights to fit different item sizes, making the system flexible for your changing needs.

Here are the key features that set a cantilever rack apart from other storage systems:

• Vertical uprights with horizontal arms for direct support of long or bulky items.

• Adjustable arms to accommodate various lengths and shapes.

• Open front design for unobstructed access and easy loading or unloading.

• Single-sided or double-sided configurations to fit your warehouse layout.

• Heavy-duty steel construction for strength and durability.

You can use cantilever racking in warehouses, lumber yards, manufacturing plants, and retail environments. The open design and adjustable arms make it a versatile storage system for materials that do not fit on standard shelves.

How Cantilever Racking Works

A cantilever racking system uses engineering principles that focus on strength, stability, and flexibility. When you load materials onto the arms, the weight creates a downward force and a rotational moment. The vertical columns and sturdy base transfer these forces safely to the floor, keeping your storage system stable.

You must distribute loads evenly across the arms and columns. If you place too much weight on one side or overload a single arm, you risk bending or damaging the rack. Proper load placement ensures the cantilever rack supports heavy, uneven, or awkwardly shaped items safely.

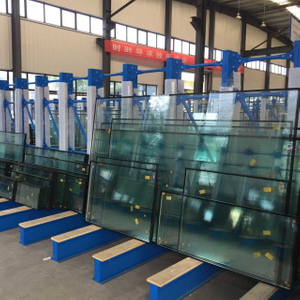

Cantilever racks can handle loads from 500 to 4000 kg per level, depending on the design and materials. You can choose single-sided racks to place against a wall or double-sided racks for access from both sides. The open design lets you use forklifts or other equipment for fast, safe access to your inventory.

Note: Environmental factors like humidity and temperature can affect your cantilever racking. High humidity may cause rust, so regular inspection and protective coatings are important. High temperatures can lead to metal expansion, so check fasteners and connections often.

Modern cantilever racking systems now include innovations such as modular designs, enhanced safety features, and even smart monitoring for inventory and structural health. These advancements help you optimize your warehouse space and improve operational efficiency.

Components of Cantilever Racking

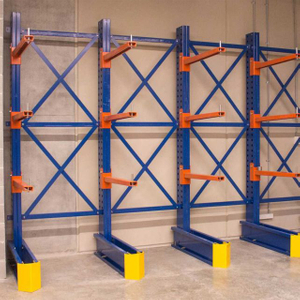

Base and Uprights

You rely on the base and uprights to form the backbone of any cantilever system. The base anchors the rack to the floor, providing stability and preventing tipping when you store heavy or long items. Uprights rise vertically from the base and support the arms that hold your materials. You can select from a range of upright heights to match your storage needs. The following table shows common upright dimensions and weights:

You should always ensure that the base and uprights are properly anchored and aligned. This step maximizes the cantilever rack’s stability and safety, especially when you handle a heavy load.

Arms and Braces

Arms and braces play a critical role in the strength and durability of your cantilever racking. The arms extend horizontally from the uprights and directly support your materials. Manufacturers use high-strength steel for these arms, then apply a powder coating to resist corrosion and wear. Each arm can support a significant load—up to 3,000 lbs—making them ideal for industrial environments.

Braces connect the uprights and add lateral stability. Structural channel steel braces bolt the uprights together, preventing sway and deformation under load. You should inspect arms and braces regularly for rust, deformation, or broken welds. Secure anchorage and tight bolts help maintain the rack’s integrity and extend its lifespan.

Tip: Regular maintenance and proper installation keep your cantilever racking safe and reliable for years.

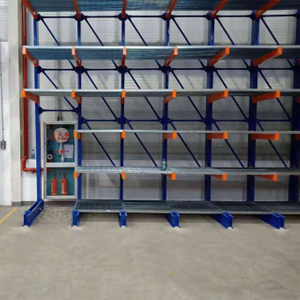

Decking Options

You can customize your cantilever rack with several decking options to suit your inventory. The most popular choices in industrial settings include:

• Cantilever Wire Decking: Welded wire mesh grid for visibility, airflow, and fire safety. Great for retail and food storage.

• Cantilever Steel Decking: Solid steel surface for maximum strength and durability. Ideal for heavy or fragile goods.

• Cantilever Solid Decking: Plywood or wood panels create a flat, stable surface for large or irregular items like furniture.

• Cantilever Perforated Decking: Metal with perforations balances airflow, visibility, and load support. Useful in manufacturing and temperature-sensitive storage.

Selecting the right decking helps you optimize your cantilever system for your specific load types and operational needs.

Types of Cantilever Racking

When you choose a cantilever rack system, you need to understand the main types available. Each type of cantilever racking system offers unique benefits for different storage needs. You can select from structural cantilever racks, roll-formed cantilever racks, and heavy duty cantilever racking systems. These options help you create a heavy duty and high capacity storage solution for your warehouse or facility.

Structural Cantilever Racks

Structural cantilever racks use hot-rolled steel beams and columns. You get a rack that stands up to heavy-duty use, frequent forklift impacts, and harsh environments. These racks feature bolted connections, which provide high capacity and stability. You can store lumber, steel pipes, plywood, and other bulky items with confidence. Structural racks work well in outdoor yards, freezer storage, and industrial settings where durability matters most.

Roll-Formed Cantilever Racks

Roll-formed cantilever racks use cold roll-formed steel. You get a lighter, more affordable rack that is easy to install and adjust. These racks use boltless pin connectors, so you can reconfigure your racking systems quickly. Roll-formed racks suit lighter loads, such as plastic pipes, cartons, or lightweight building materials. You should use roll-formed racks when you need flexibility and lower capacity in your warehouse.

Heavy Duty Cantilever Racking System

You need a heavy duty cantilever racking system for storing oversized, extremely heavy items. These racks support high capacity loads and provide a heavy duty storage system for steel coils, large timber, or industrial equipment. Safety is critical with heavy-duty racks. You should schedule annual inspections by certified professionals and conduct frequent in-house checks. Inspect arms, base plates, connections, and anchorage points to maintain structural integrity. Keep documentation such as inspection reports and compliance certificates to meet safety standards. Train your workers on proper loading, weight limits, and emergency procedures. Distribute loads evenly and keep aisles clear for safe movement.

Botro Group brings over 21 years of manufacturing expertise to every cantilever racking system. You benefit from a complete product range, including pallet racking and racking systems, designed for heavy-duty and high capacity storage. Botro Group holds ISO9001, ISO14001, CE, BV, and SGS certifications, ensuring you receive reliable, compliant, and safe cantilever rack solutions.

Materials Stored

Long and Bulky Items

You often face challenges when storing long, heavy, or awkwardly shaped products. Cantilever storage racks give you a practical way to organize these items. The open-arm design supports materials that do not fit on standard shelves or pallet racks. You can store everything from steel beams to furniture with ease.

Here is a table showing common long and bulky materials you can store on cantilever racks:

You can use cantilever pallet racks as a storage solution for lumber, steel bars, sheet steel, tubing, and even large boxes or pallets. This flexibility makes cantilever racks ideal for handling bulky materials that require open access and strong support.

Tip: When you store heavy or oversized items, always distribute the weight evenly across the arms. This practice keeps your rack stable and extends its lifespan.

Industry Examples

Many industries rely on cantilever racks to manage their inventory efficiently. You see these racks in places where long, heavy, or irregular items are common.

• Construction companies use cantilever racks for storing lumber, pipes, and building materials.

• Manufacturing plants organize steel bars, beams, and sheet metal on these racks.

• Warehouses keep furniture, appliances, and carpet rolls accessible and safe.

• Auto salvage yards store car parts, doors, and even entire vehicles on heavy-duty cantilever racks.

• Retailers and distributors use cantilever racks both indoors and outdoors for products like PVC pipe, plywood, and extrusions.

You benefit from the open design, which allows forklifts and workers to access items quickly. Cantilever racks adapt to your changing needs, making them a smart investment for any business that handles bulky or oversized goods.

Pros and Cons

Advantages

You gain several advantages when you choose a heavy-duty storage system designed for long or bulky items. Cantilever racks stand out for their open design, which gives you direct access to every product without front columns blocking your way. This feature improves rack accessibility and speeds up loading and unloading. You can adjust the arms to fit different product sizes, making the system flexible for changing inventory.

Here is a comparison between cantilever racks and selective pallet racks:

You benefit from increased storage space by clearing floor areas and organizing long loads vertically. This approach helps you maximize space utilization and improve warehouse organization. The heavy-duty construction supports high load capacities, making it a fast and easy storage system for demanding environments. The benefits of cantilever systems include flexibility, durability, and the ability to increase storage capacity without expanding your warehouse footprint.

Limitations

While cantilever racks offer many strengths, you should consider a few limitations. The open structure requires careful installation to maintain rigidity, especially for extremely heavy-duty applications. Without back or side supports, you must secure items to prevent them from falling. If you underestimate load requirements or skip regular inspections, you risk safety issues. Always follow recommended guidelines for load distribution and rack assembly.

Safety and Installation

Proper safety and installation practices ensure your heavy-duty storage system performs reliably. Start by installing racks on level, solid surfaces and anchoring them securely, especially in seismic zones. Distribute each load evenly across multiple arms and make sure items span at least two uprights. Use arm stoppers or pipe stops to prevent products from slipping. Provide enough aisle space for forklifts to access racks safely. Train your team on safe loading and unloading procedures, and schedule regular inspections to check for damage or misalignment.

Tip: Multi-directional forklifts work well with cantilever racks, especially in narrow aisles. Their open-front design allows fast, precise access to heavy-duty loads and improves workflow.

By following these guidelines, you create a safer environment and extend the life of your storage system.
