Rack clad warehouse

Views: 0     Author: Site Editor     Publish Time: 2021-08-16      Origin: Site

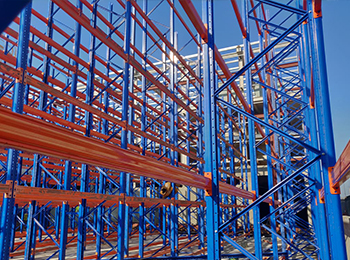

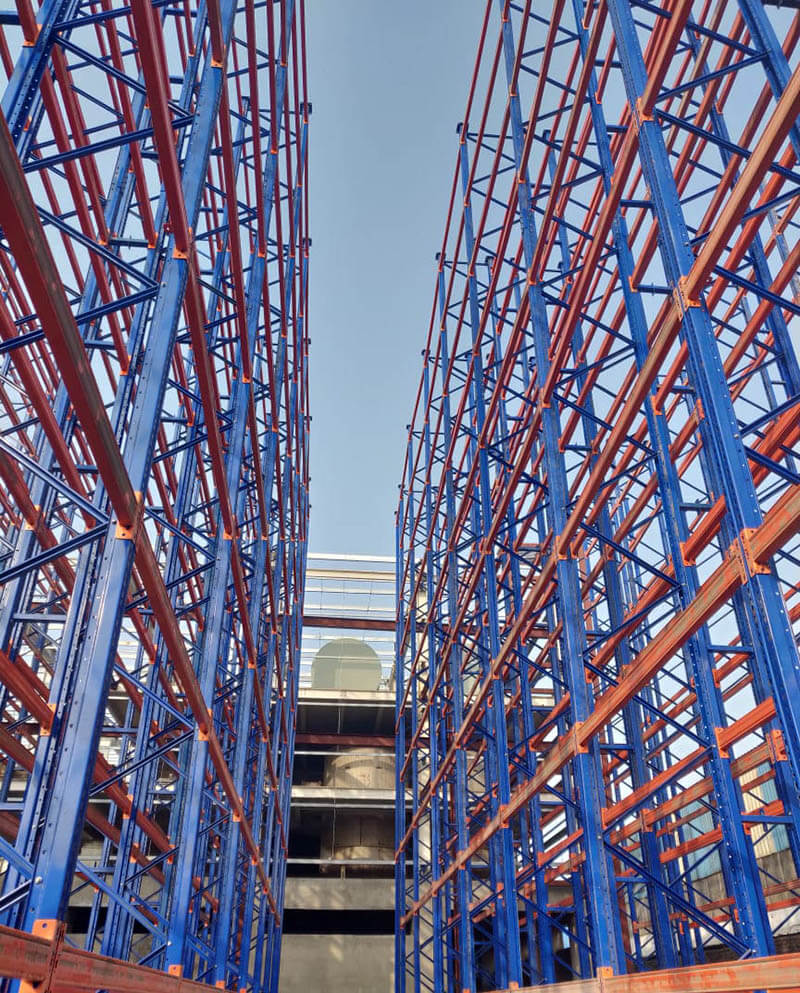

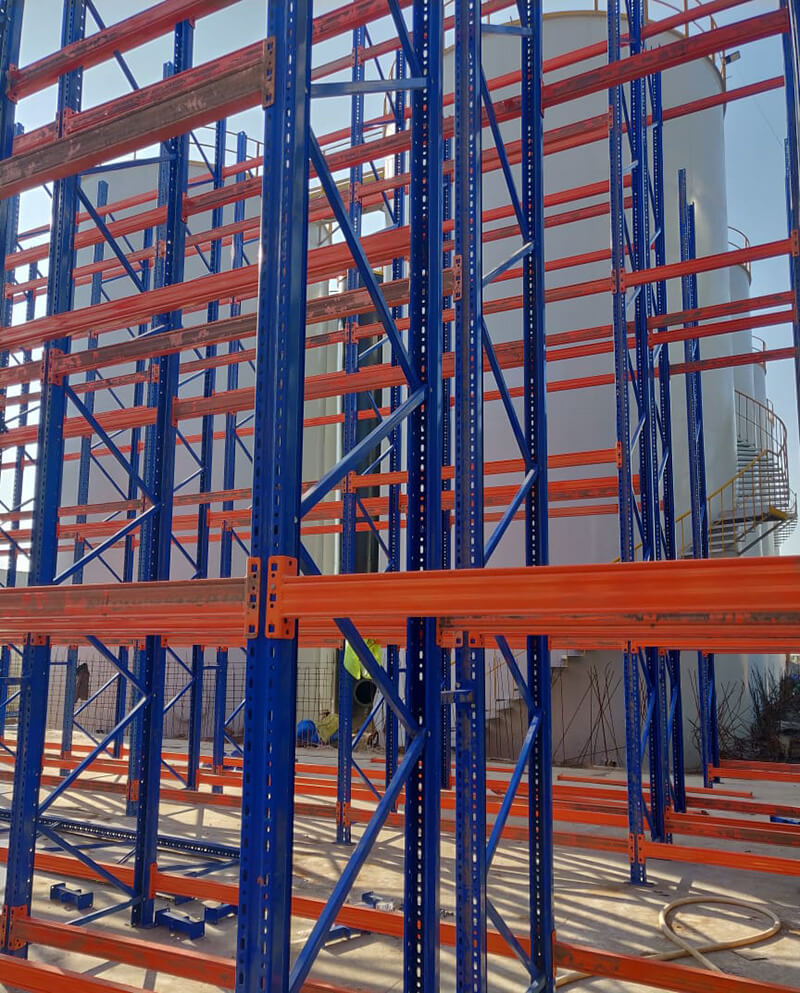

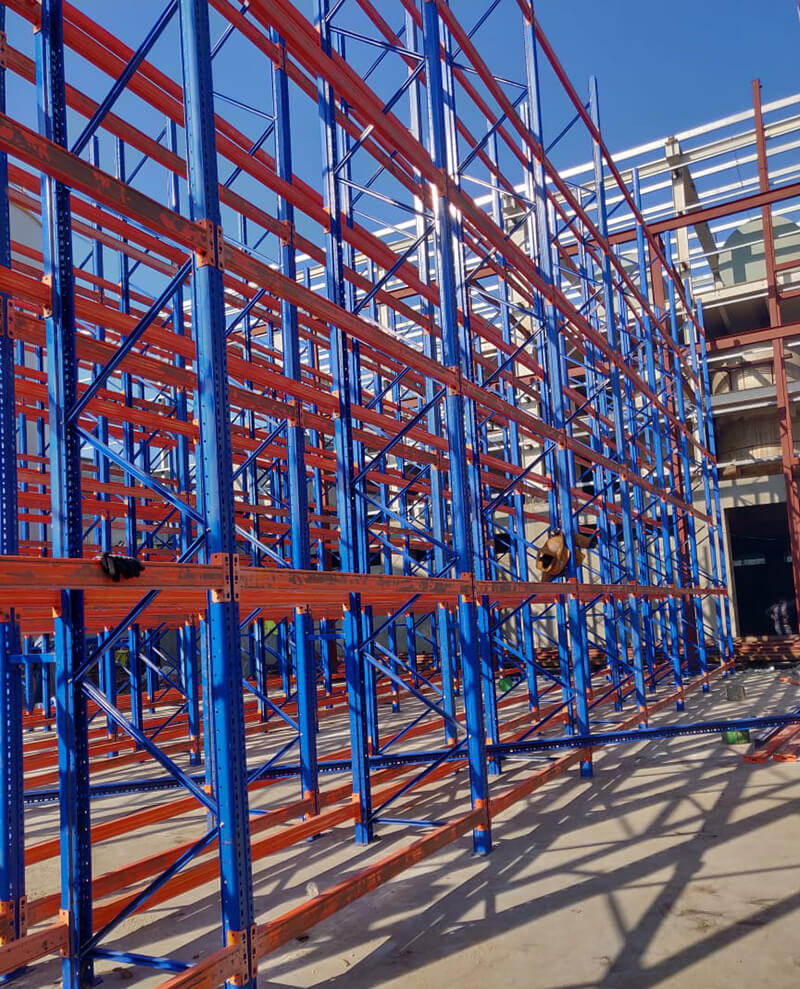

Picture a 13.5 meters high clad-rack warehouse, to increase storage density, increase warehouse capacity utilization, and reduce costs.

Two Stores Nearly 800 m2, 2304 pallet positions total.


Leader in lubricants product manufacturing

VISTONY is a leading transnational company in the manufacture and marketing of lubricants, coolants and auxiliary products for maintenance. We have more than 25 years in the market, satisfying the needs of the automotive and industrial sectors.


Building Time

VISTONY India received our self-support systems on April 2020, however at the end of 2019, the coronavirus appears in many countries, and until the virus mutates into delta strain all influenced the installation progress. So VISTONY India has finished clad-rack warehouse over a period of ten months.


Staging Area Next Door

A shorter, 6m tall building was constructed along with one of the sides of the warehouse and occupies a 212m2 surface area. There are two doors, one is material in, the other is material out.

This is a staging area and, as such, has been specially designed so that all operations are done in the most efficient manner.


Order Picking

The order will be picked by the VNA forklift. The aisle depth is 2.35m and column height is 13.5m, due to the column is high and aisle is narrow, so the VNA forklift will be a good option. The forklift does not turn around, the fork will turn around, and forklift has its own induction, without guide rail.


Self-supported Systems In India

Pallet Positions

ALMACEN PT:1296NOS

ALMACEN INSUMOS :1008NOS

Pallet Size

W1100*D1200*H1100mm

Pallet Max Load

500KG

Warehouse Height

13500mm

Warehouse Length

30600mm

VNA Forklift

2NOS
